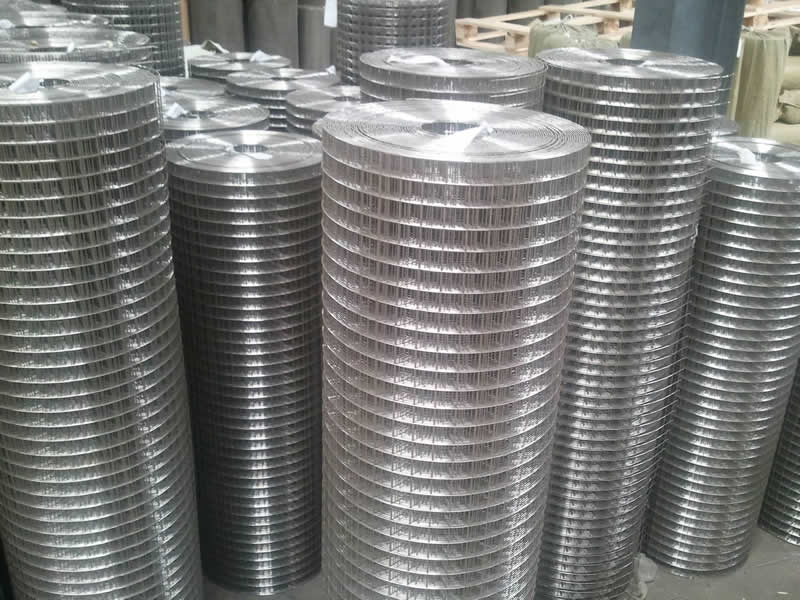

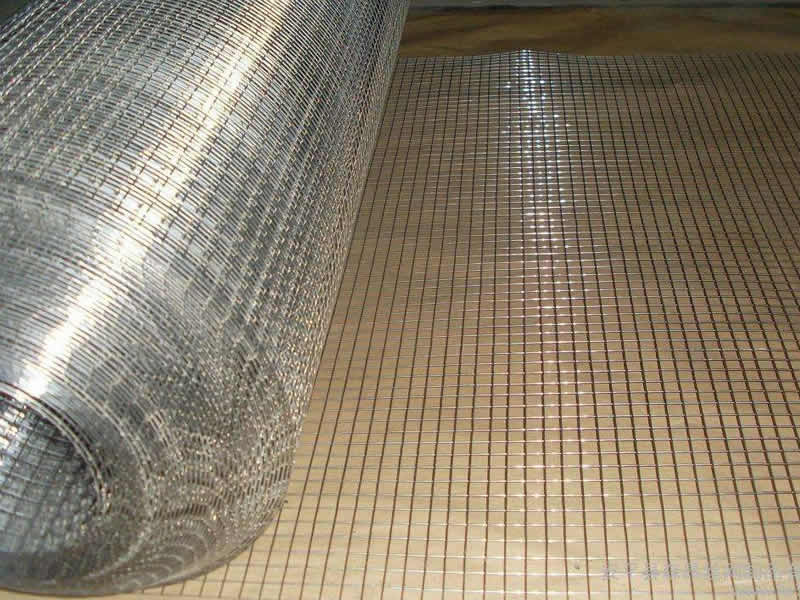

Galvanized Welded Wire Mesh
Galvanized welded wire mesh can be divided into electrical galvanized welded wire mesh and hot dipped galvanized welded wire mesh.
Galvanized welded iron wire mesh is made of high quality iron wire and welded by advanced automatic precision welding equipment.
After processing of galvanize, It has the fine characters of flat even surface, good anti-corrosiveness, firm welding point, structure and strong collectivity. It will not come loose even though a part is cut.
The products is extensively used in industry, agriculture, transportation, mining and so on.
Packing: moister-proof paper, PVC film, nude packed
| galvanized welded wire mesh specification | ||
| mesh size | wire diameter(BWG) | |
| inch | inch | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
| Special specification can be ordered according to customer demands | ||
